Colour Schematics - free to download from gallery

#1

Post by Sidecar Bob »

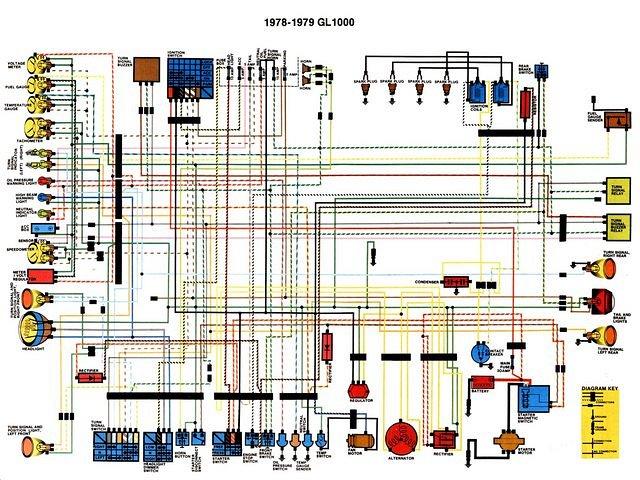

I have stitched all of the GL1000 and GL1100 2 page colour schematics together into single page images and cleaned them up a bit. They are 2048 x 1536 pixels and in the 550-620 Kb range, so they aren't too big to e-mail.

Don't download the images shown here. These are only screen size sample views.
To make sure you get the full size 2048 x 1536 pixel versions click on "Download Large Version" under the ones you want


Download Large Version

Download Large Version

Download Large Version

Download Large Version

Download Large Version

Download Large Version

Download Large Version

UK/Australian version GL1000 1975-77
Download Large Version

Useful to anyone reading these schematics:
Download Large Version

If anyone has colour schematics of the GL1200I and -A, please scan them at the best resolution and e-mail them to me so that I can do them too.
Last edited by Sidecar Bob on Tue Sep 22, 2020 10:51 am, edited 6 times in total.
Mr. Honda ('83 GL1100/Dnepr) summer New Engine Thread
The Famous Eccles ('84 CX650EI/VeloUral) winter Never Ending Build (CX500forum)
Click: Colour schematics for all GL1000 & GL1100 and GL1200 standard models plus instructions on how to download the full size version
"A guy with two sidecars can't be all bad." - Cookie
Another guy with two sidecars..... Hmmmm... must be something to that....
User avatar
RebelRouser
Webmaster (Retired)
Webmaster (Retired)
Posts: 7198
Joined: Sat Sep 17, 2005 8:44 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/rebelrouser/
Location: The Dalles, Or.
Contact:

#2

Post by RebelRouser »

I'm Moved This To A Safe Place For Future Refernce....
If You Didn't Build It, Customize It, And/Or Modify It, Then It Truly Isn't Yours. Rebel Rouser
User avatar
Hanky Panky
Brass Member
Brass Member
Posts: 30
Joined: Fri Mar 28, 2008 11:11 pm
Location: Cape Cod,Massachusetts

schematics

#3

Post by Hanky Panky »

Thanks Bob they came out real nice
1978 GL 1000 Unta Glebin Glopin Globin
heraldhamster
Honored Life Member
Honored Life Member
Posts: 4505
Joined: Wed Jun 28, 2006 2:52 pm
Location: up by the Canadian border in WA state

#4

Post by heraldhamster »

very nice Bob. THANKS!

if I can get a few bucks I'm gonna have Kinky's print me out one "landscape" format in 1/2 poster size & laminate it (I don't have access to a color printer that size anymore). ought to look good hanging on the wall in the "shop".
sorta bulldogged custom 1978 GL1000 - "geekster"
full Vetter dress 1979 GL1000 - "Barge" (currently down)
1986 1200 Aspencade - "Heart of Gold" - daily rider
1990 1500 Aspencade - It's ALIVE! but very, very naked. not in a good way.
1978 for $100 - project in worx
1978 from a previous member here - taking up space
my original '79 bought in '91 - replacing engine (eventually, maybe someday)

H2G2=42

A competent and self-confident person is incapable of jealousy in anything. Jealousy is invariably a symptom of neurotic insecurity. ~ Robert A. Heinlein

The good thing about science is that it's true whether or not you believe in it. ~ Neil deGrasse Tyson
User avatar
Sidecar Bob
Honored Life Member
Honored Life Member
Posts: 5659
Joined: Sun Jun 11, 2006 10:14 pm
Location: Kawartha Lakes, Ontario

#5

Post by Sidecar Bob »

It just occurred to me: If you get it laminated you should be able to use white board markers on it. This means that when you do mods you can draw them on it in colour as you work, scan it, print a copy for reference, and wipe the marks off so that the drawing is still original.

I used to open up harnesses to modify wiring, but for the last dozen years or so I have simply made up sub harnesses that plug into the original wiring. That way, if(when) I decide to change it later I just change the sub harness instead of having to open up the main harness again. It would be nice to have coppies of what I did in the past drawn directly onto the schematic so that I can see the way it used to be.
Mr. Honda ('83 GL1100/Dnepr) summer New Engine Thread
The Famous Eccles ('84 CX650EI/VeloUral) winter Never Ending Build (CX500forum)
Click: Colour schematics for all GL1000 & GL1100 and GL1200 standard models plus instructions on how to download the full size version
"A guy with two sidecars can't be all bad." - Cookie
Another guy with two sidecars..... Hmmmm... must be something to that....
heraldhamster
Honored Life Member
Honored Life Member
Posts: 4505
Joined: Wed Jun 28, 2006 2:52 pm
Location: up by the Canadian border in WA state

#6

Post by heraldhamster »

ta-DAH!
sorta bulldogged custom 1978 GL1000 - "geekster"
full Vetter dress 1979 GL1000 - "Barge" (currently down)
1986 1200 Aspencade - "Heart of Gold" - daily rider
1990 1500 Aspencade - It's ALIVE! but very, very naked. not in a good way.
1978 for $100 - project in worx
1978 from a previous member here - taking up space
my original '79 bought in '91 - replacing engine (eventually, maybe someday)

H2G2=42

A competent and self-confident person is incapable of jealousy in anything. Jealousy is invariably a symptom of neurotic insecurity. ~ Robert A. Heinlein

The good thing about science is that it's true whether or not you believe in it. ~ Neil deGrasse Tyson
User avatar
scmedic6
Cast Iron Member
Cast Iron Member
Posts: 59
Joined: Fri Apr 04, 2008 3:28 am
Location: Augusta Ga

#7

Post by scmedic6 »

Very nice Sidecarbob. BTW How did you get an 83 GL1000? looks like an awesome bike.
1978 GL1000 naked restoring
1983 Gl1100 dressed just aquired
User avatar
Sidecar Bob
Honored Life Member
Honored Life Member
Posts: 5659
Joined: Sun Jun 11, 2006 10:14 pm
Location: Kawartha Lakes, Ontario

#8

Post by Sidecar Bob »

It's an '8s with a '79 engine. A few years ago I put the back cover & kickstart from a '77 on it so I can tell people that '83 was the last year GL1000s had a kickstart ;-)
Mr. Honda ('83 GL1100/Dnepr) summer New Engine Thread
The Famous Eccles ('84 CX650EI/VeloUral) winter Never Ending Build (CX500forum)
Click: Colour schematics for all GL1000 & GL1100 and GL1200 standard models plus instructions on how to download the full size version
"A guy with two sidecars can't be all bad." - Cookie
Another guy with two sidecars..... Hmmmm... must be something to that....
User avatar
scmedic6
Cast Iron Member
Cast Iron Member
Posts: 59
Joined: Fri Apr 04, 2008 3:28 am
Location: Augusta Ga

#9

Post by scmedic6 »

Now Thats funny!!!
1978 GL1000 naked restoring
1983 Gl1100 dressed just aquired
User avatar
PJMehaffey
Chrome Member
Chrome Member
Posts: 181
Joined: Tue Apr 15, 2008 3:13 pm
Location: Baton Rouge

#10

Post by PJMehaffey »

Did you ever get the GL1200 wiring info?
Always ready to Ride!

1984 GL1200I 1978 CB750K (project) 1977 CB750A (project)


[url=http://s224.photobucket.com/albums/dd275/pjmehaffey/GL1200/][u]My Album[/u][/url]
User avatar
Sidecar Bob
Honored Life Member
Honored Life Member
Posts: 5659
Joined: Sun Jun 11, 2006 10:14 pm
Location: Kawartha Lakes, Ontario

#11

Post by Sidecar Bob »

Not yet.

BTW: I have noticed these schematics available for download elsewhere on the internet in this form and that's fine with me. I do not seek credit because all I did was clean up someone else's scans of published drawings and join the halves together.
Mr. Honda ('83 GL1100/Dnepr) summer New Engine Thread
The Famous Eccles ('84 CX650EI/VeloUral) winter Never Ending Build (CX500forum)
Click: Colour schematics for all GL1000 & GL1100 and GL1200 standard models plus instructions on how to download the full size version
"A guy with two sidecars can't be all bad." - Cookie
Another guy with two sidecars..... Hmmmm... must be something to that....
User avatar
Whiskerfish
President
President
Posts: 34023
Joined: Thu Feb 16, 2006 9:34 pm
My Album: http://www.ngwclub.com/gallery/v/wingmans/whiskerfish/
Location: Norfolk Va

Re: Colour Schematics - free to download from gallery

#12

Post by Whiskerfish »

Bump for update
"Agreement is not a requirement for Respect" CDR Michael Smith USN (Ret) 2017
"The book is wrong, this whole Conclusion is Fallacious" River Tam
2008 GL1800 IIIA "TH3DOG"
1975/6/7/8/9 Arthur Fulmer Dressed Road bike
1975 Naked Noisy and Nasty in town bike
and a whole garage full of possibilities!!

Psst. oh and by the way CHANGE YOUR BELTS!!!!
User avatar
chewy999
SUPER BIKER!!!!
SUPER BIKER!!!!
Posts: 3212
Joined: Tue Oct 16, 2012 11:21 am
Location: Haddenham, Cambs, UK

Re: Colour Schematics - free to download from gallery

#13

Post by chewy999 »

Thanks for that, go to the top of the class.

anim-cheers1
Previous Rides,
1980 CB250N Good to learn on
1981 CX500 good mid range tourer, went to Austria on it!
1983 GL1100C Pride and joy, sold when I bought my 1st house, big mistake
1985 GL650 Silverwing another mistake, horrible bike
1986 CBX550 Good commuter
1989 Suzuki GS750 (1976) cheap and cheerful until a dog ran out in front of me on Xmas Eve, 1991
Current bikes
2010 CB1300 back on a bike after 19 years, two divorces, children grown up etc
1980 GL1100 NOW ON THE ROAD, still use CB1300.
User avatar
Sidecar Bob
Honored Life Member
Honored Life Member
Posts: 5659
Joined: Sun Jun 11, 2006 10:14 pm
Location: Kawartha Lakes, Ontario

Re: Colour Schematics - free to download from gallery

#14

Post by Sidecar Bob »

I now have the 1984 GL1200 Standard (same instructions as for the rest). I am still looking for the GL1200I & GL1200A.
Mr. Honda ('83 GL1100/Dnepr) summer New Engine Thread
The Famous Eccles ('84 CX650EI/VeloUral) winter Never Ending Build (CX500forum)
Click: Colour schematics for all GL1000 & GL1100 and GL1200 standard models plus instructions on how to download the full size version
"A guy with two sidecars can't be all bad." - Cookie
Another guy with two sidecars..... Hmmmm... must be something to that....
User avatar
Roady
Member Relations &_Graphics
Member Relations &_Graphics
Posts: 11944
Joined: Wed Jun 20, 2007 2:35 pm
Location: Port St. John, FL

Re: Colour Schematics - free to download from gallery

#15

Post by Roady »

Bob,

I added the 1200 drawing to your original post. Good job on maintaining and updating this thread.

Also added direct links to the larger versions, hope'n you don't mind.
Now you need to edit the instructions again. shakehands
